The saxon PSB X1-3 Deluxe Stereo Microscope is a great combination of affordability and reliability. Featuring magnifications of 10x and 30x, you'll be able to view refined 3D images of your object thanks to the quality optics in this microscope. Suitable to be used both indoors and outdoors.
Description

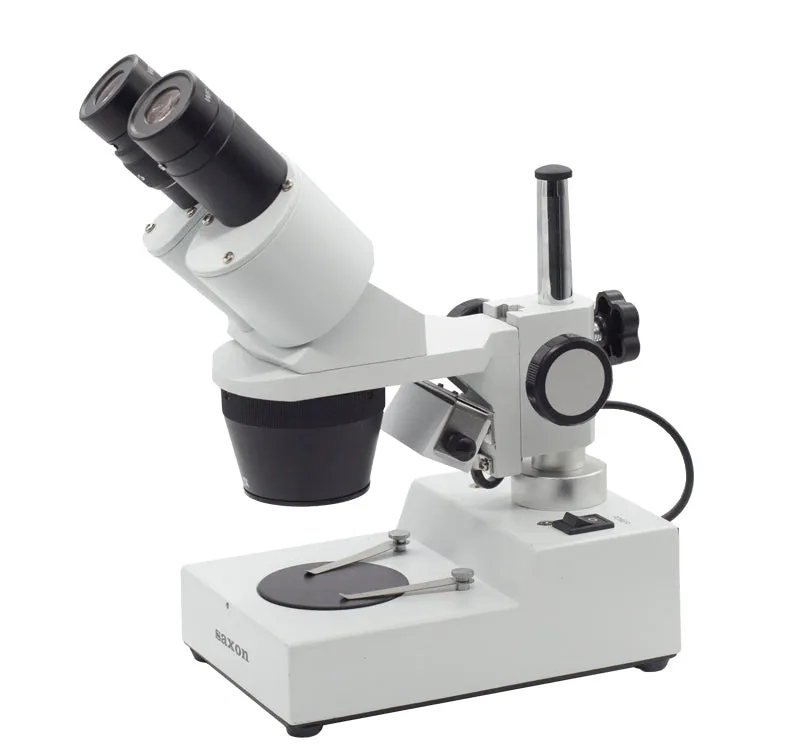

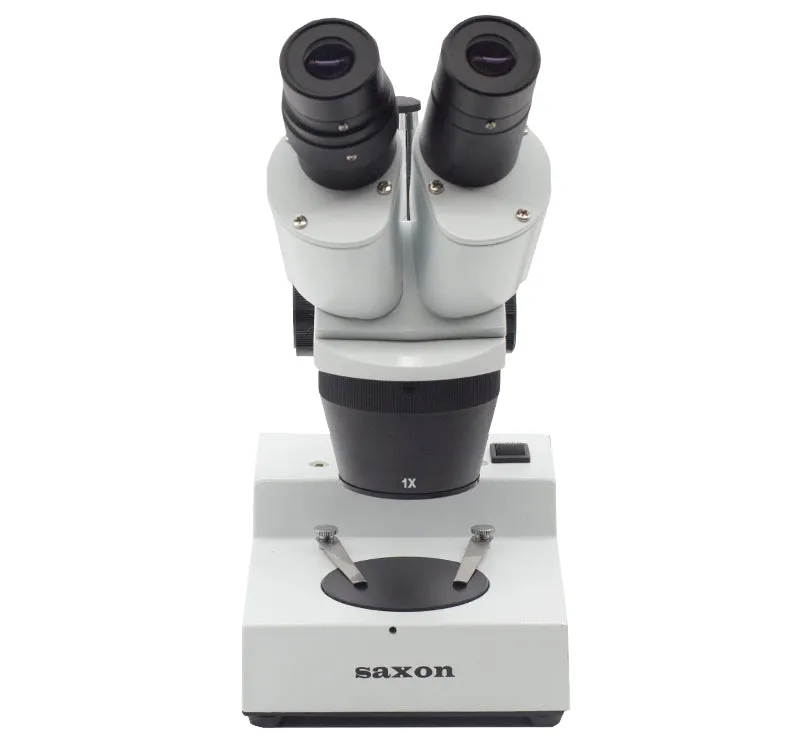

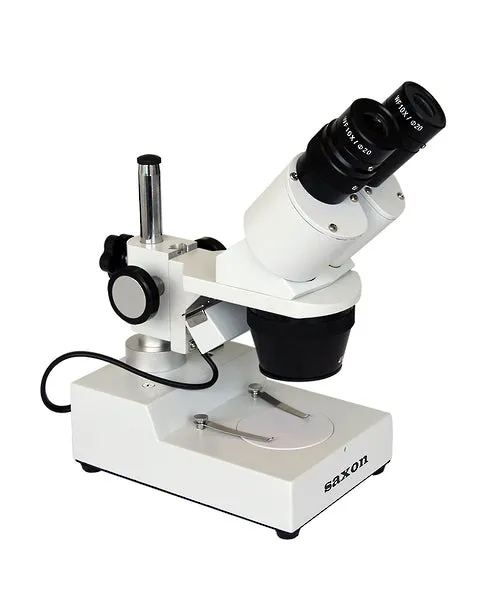

The saxon PSB X1-3 Deluxe Stereo Microscope features 10x and 30x magnification, 57mm working distance and ac powered illumination. This microscope is suitable for teachers and students, hobbyist, collectors and enthusiasts who wish to study and observe three-dimensional objects.
The microscope head is not only height adjustable but and also rotatable at 360 degrees with a twist at the knob for individual preferences. The 45 degree incline eyepieces also provide optimum comfort during viewing.
To change between magnifications, gently twist the objective lens and adjust until the subject comes into focus. Illuminated with tungsten from the top bulb, this stereo microscope is suitable for schools, dissections, studying of gems, rocks or circuit boards. The metal clips on the stage keep your slides and subjects in place for easier viewing.
For added versatility or optical enhancement, the eyepieces can be removed and replaced with a suitable alternative.
Available eyepieces: WF16x
Specifications
|
Warranty Information |
3-Years Limited Warranty |
|
Eyepiece |
WF 10x |
|
Magnification Range |
10x, 30x |
|
Objectives |
1x, 3x |
|
Field of View |
20mm |
|
Working Distance |
57mm |
|
Illumination |
Tungsten |
|
Head Type |
Binocular |
|
Focus |
Coarse |
|
Condenser |
N/A |
|
Stage Type |
Black/White Contrast Plate |
|
Stand |
Pillar |
|
Power Supply |
250v 10A Power cord |
|
Weight |
2.9kg |

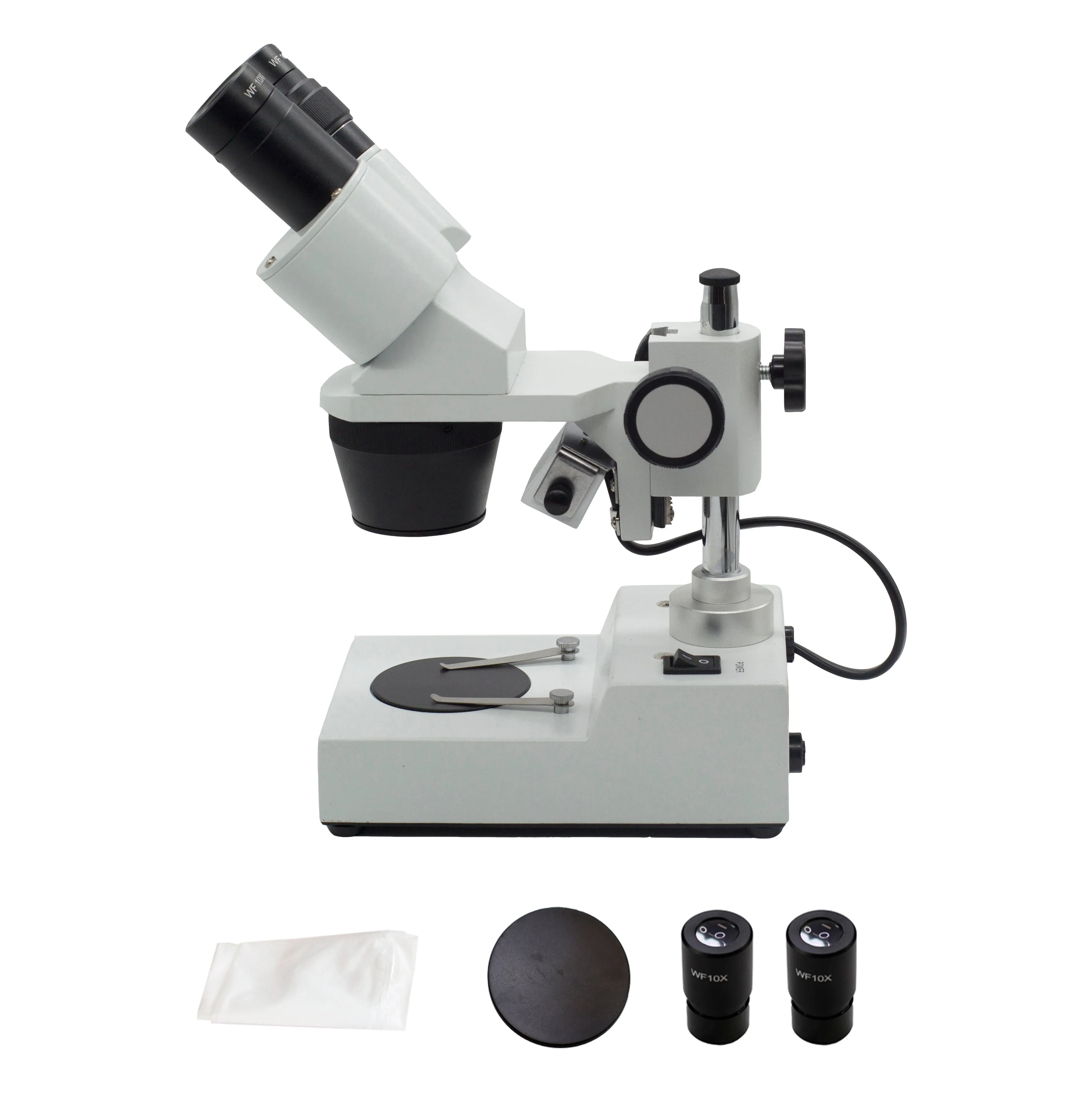

What's in the box
|
saxon WF10x Eyepiece This is a brand new widefield WF10X microscope eyepiece. It fits most common size microscopes. Give your microscope a boost with greater power & clarity at a fraction of the cost. |
|
|
Black/White Contrast Plate It is a black and white plastic stage plate for additional contrast while viewing specimens. |
|
|
saxon Adapter The adapter can support AC powered of this microscope. |
|
|
saxon Dust Cover Clear, vinyl dust covers for the protection of your microscopes. |
Image Gallery
Images below were taken with saxon PSB X1-3 Deluxe Stereo Microscope 10x-30x coupled with saxon ScopePix Smartphone Adapter.
|
$10 @10x |
$10 @30x |
$2 front @10x |
$2 back @10x |
|
5 cents @10x |
10 cents @10x |
20 cents @10x |
$1 @10x |
Download
